USER BENEFITS:

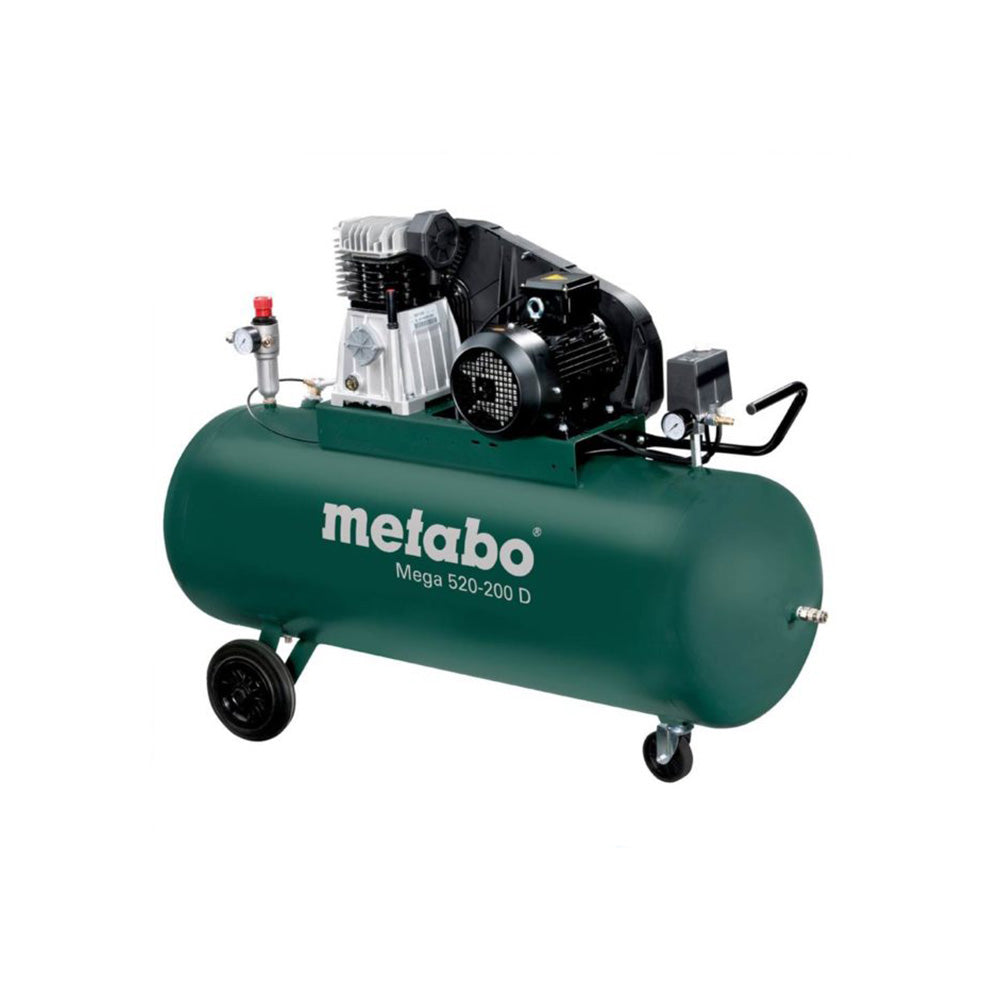

- More powerful and robust V-belt compressor for demanding use.
- Belt drive for low speeds and a particularly quiet operation.
- For three-phase current.
- Working pressure can be regulated according to application by means of a filter pressure reducer with manometer.
- Convenient pressure switch for good cold starting, complete with relief valve.
- Additional manometer for displaying the tank pressure.
- Overload protection: protects the motor from overheating.
- Oil-lubricated 2-cylinder piston compressors for high air supply volume.
- Rubberised, stable wheels and pull handle for mobile use.
- 10 year tank warranty against rust.
| Suction rate | 490 l/min / 129 gal/h |
|---|---|
| Filling capacity | 370 / 13.1 cfm |
| Effective delivery volume (at 80% max. pressure) | 320 / 11.3 cfm |
| Maximum pressure | 10 bar / 145 psi |
| Rated input power | 3 kW / 4 HP kW |
| Maximum speed | 1300 rpm |
| Tank capacity | 200 l / 52.8 gal |
| Sound pressure level (LpA) | 89 dB(A) |
| Sound power level (LwA) | 96 dB(A) |
| Dimensions | 1500 x 450 x 960 mm / 5 x 1.5 x 3.2 ft |
| Weight | 131 kg / 289 lbs |
| Cable length | 1.5 m / 5 ft |
| Noise Emission | Sound pressure level | 89 dB(A) |
| Noise Emission | Sound power level (LwA) | 96 dB(A) |
SCOPE OF DELIVERY:
- 3 Universal couplings
