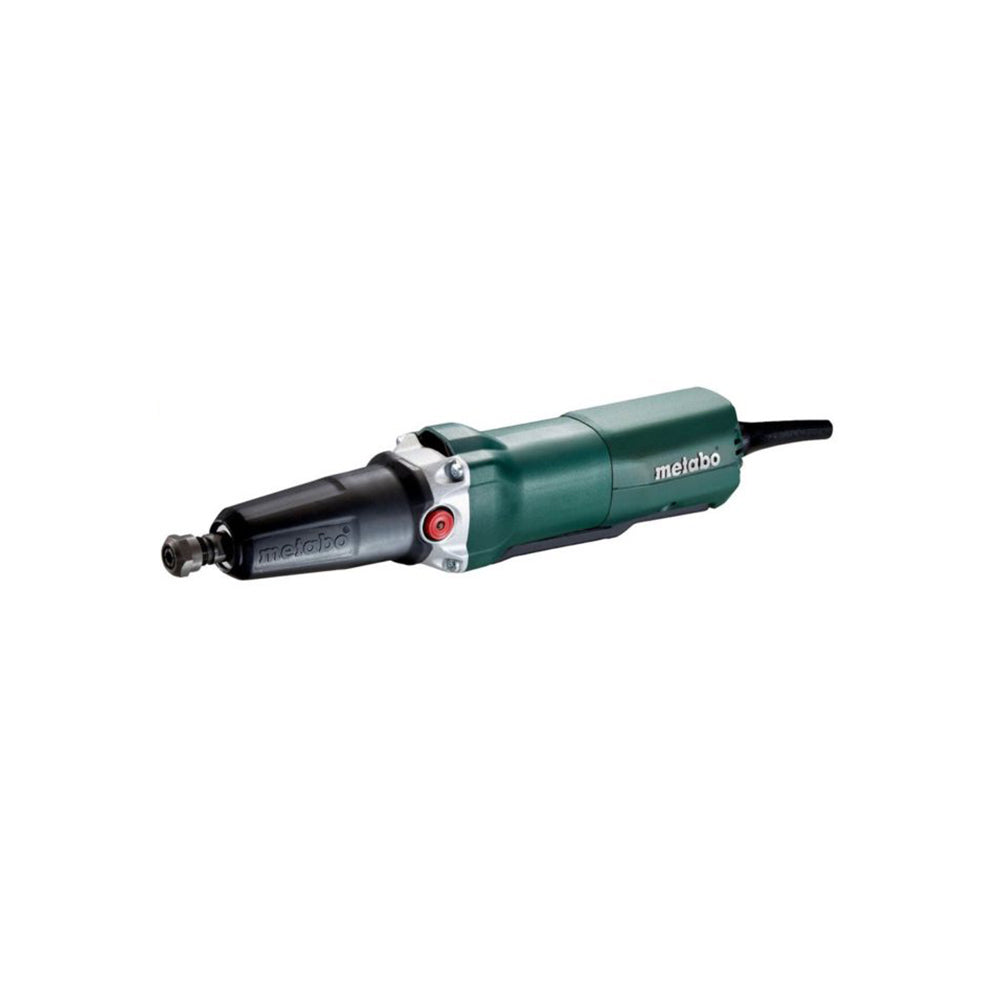

Metabo Die Grinder With Deadman Switch
DEADMAN SWITCH AND SLIM DESIGN.
USER BENEFITS:
- Paddle switch with deadman functions: safe to operate due to an ergonomically integrated non-slip switch.
- Long grinding spindle – ideal for working in hard-to-reach places.
- Spindle lock for simple change of tools.
- Aluminium die-cast bearing flange for the long service life of the machine.
- Vario-Constamatic (VC)- Electronics for work with materials requiring customised speeds, which remain almost constant under load.
- Thumbwheel for Speed Preselection.
- Electronic safety shutdown of the motor for safe working in case the tool stops unexpectedly.
- Restart protection: prevents unintentional start-up after power supply interruption.
- Electronic overload protection for long service life.
- Precise collar for stationary use.
- Removable protective rubber cap for comfortable and safe working.
- Slim design for ideal handling.
- Precision collet for precise concentricity.
- Metabo Marathon motor with patented dust protection for long service life.
TECHNICAL SPECIFICATION:
| No-load speed | 10000 – 30500 rpm |
|---|---|
| Rated input power | 710 W |
| Output power | 430 W |
| Revolutions at rated load | 24000 rpm |
| Collar diameter | 43 mm / 1 11/16 " |
| Collet chuck bore | 6 mm / 0.2362 " |
| Weight (without power cable) | 1.6 kg / 3.5 lbs |
| Cable length | 4 m / 13 ft |
| Vibration | Surface grinding (up to Ø 25 mm) | 5.6 m/s² |
| Vibration | Surface grinding (up to Ø 50 mm) | 16.9 m/s² |
| Vibration | Uncertainty of measurement K | 1.5 m/s² |
| Noise Emission | Sound pressure level | 80 dB(A) |
| Noise Emission | Sound power level (LwA) | 91 dB(A) |
| Noise Emission | Uncertainty of measurement K | 3 dB(A) |
SCOPE OF DELIVERY:
- Supplied in a Cardboard Box
- Collet 6 mm
- Protective rubber cap
- 1 Open-jawed spanner
