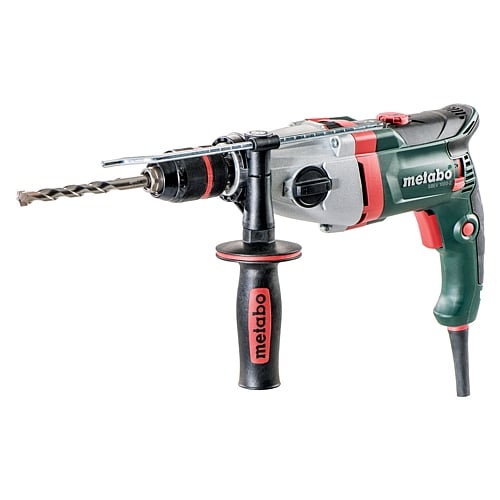

SBEV 1000-2 (600783500) Impact drill
metaBOX 145 L

Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customized speeds, which remain
constant under load
Thumbwheel for Speed Preselection
Robust die-cast aluminium gear housing for optimum heat dissipation and long service life
Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn
screws

Metabo Marathon-motor with dust protection for long service life
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
Forward and reverse rotation
Spindle with hexagonal recess for screwdriver bits for working without chuck
Restart protection: prevents unintentional start-up after a power supply interruption
Cable-protecting ball joint for optimal freedom of motion when working
With metaBOX, the intelligent solution for transport and storage

Technical data

Characteristics

Rated input power: 1010 W
Output power: 540 W
Maximum torque: 40 / 14 Nm
Drill-Ø masonry: 22 mm
Drill-Ø concrete: 20 mm

Drill Ø steel: 16 / 10 mm
Drill-Ø softwood: 40 / 25 mm
No-load speed: 0 - 1000 / 0 - 2800 rpm
Revolutions at rated load: 1000 / 2800 rpm
Maximum impact rate: 53200 bpm

Gears: 2
Chuck capacity: 1.5 - 13 mm
Collar diameter: 43 mm
Drill spindle with hexagonal recess: 6.35 mm
Drill spindle thread: 1/2 " - 20 UNF

Chuck clamping type: Keyless chuck
Weight (without power cable): 2.7 kg
Cable length: 4 m

Vibration

Drilling in metal: 4.2 m/s²
Uncertainty of measurement: K 1.5 m/s²
Impact drilling concrete: 17 m/s²
Uncertainty of measurement: K 1.5 m/s²

Noise emission

Sound pressure level: 103 dB(A)
Sound power level (LwA): 114 dB(A)
Uncertainty of measurement K: 3 dB(A)
