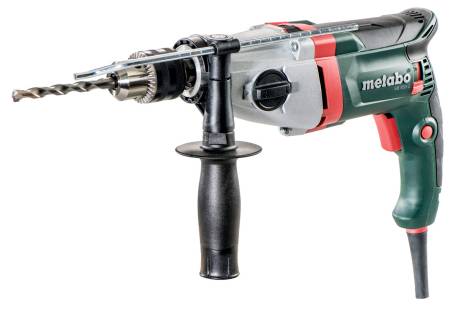

Impact Drill 13Mm Geared Chuck 850W

Robust die cast aluminium gear housing for optimum heat dissipation and long service life
Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn
screws
Metabo Marathon-motor with dust protection for long service life
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly

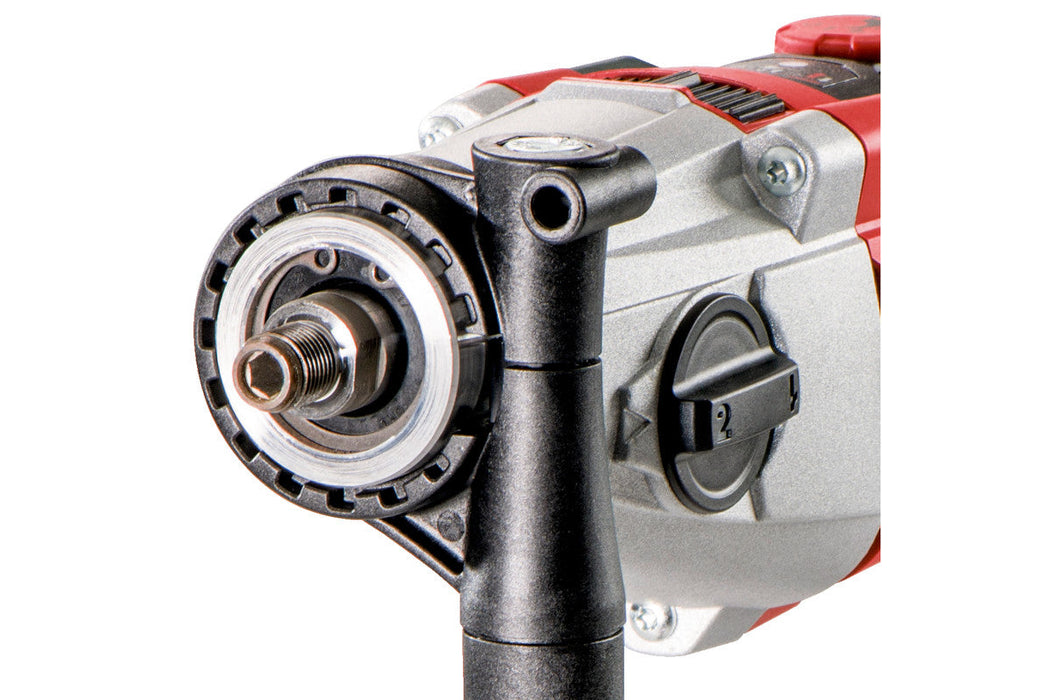

Spindle with hexagonal recess for screwdriver bits for working without chuck
Cable-protecting ball joint for optimal freedom of motion when working

Technical data

Characteristics

Rated input power 850 W
Output power 490 W
Maximum torque 36 / 14 Nm
Drill-Ø masonry 20 mm
Drill-Ø concrete 18 mm
Drill Ø steel 13 / 8 mm
Drill-Ø soft wood 40 / 25 mm
No-load speed 1100 / 3100 rpm
Revolutions at rated load 640 / 1800 rpm
Maximum impact rate 58900 bpm
Gears 2
Chuck capacity 1.5 - 13 mm
Collar diameter 43 mm
Drill spindle with hexagonal recess 6.35 mm
Drill spindle thread 1/2 " - 20 UNF
Chuck clamping type Geared Chucks
Weight (without power cable) 2.6 kg
Cable length 4 m

Vibration

Drilling in metal 4.2 m/s²
Uncertainty of measurement K 1.5 m/s²
Impact drilling concrete 17 m/s²
Uncertainty of measurement K 1.5 m/s²

Noise emission

Sound pressure level 103 dB(A)
Sound power level (LwA) 114 dB(A)
Uncertainty of measurement K 3 dB(A)
Scope of delivery
Geared Chucks
Chuck Keys
rubber-coated side handle
Drilling depth guide
