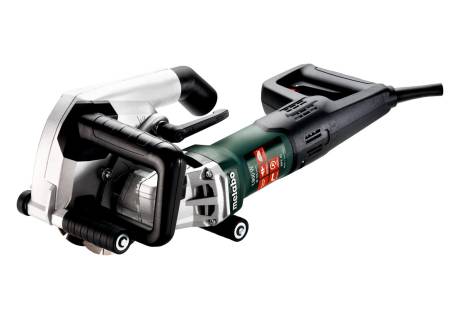

Wall Chaser
USER
- Ideal for electric installations to lay cables and empty pipes under plaster with cutting depths up to 40 mm
- Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
- Robust aluminium die-cast hood with rubber rolls and optimal handle position for comfortable guiding of the machine
- Pushing cut for optimal view of the marking line
- Channel width and cutting depth can be set
- Metabo Marathon motor with patented dust protection for long service life
- Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
- Electronic soft start and restart protection for safe working
- LED signal informs about overload or active restart protection
- Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
- Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)
- Also suitable for cutting with only one diamond cutting disc
- Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly
TECHNICAL SPECIFICATIONS:
Adjustable cutting depth |
10 – 40 mm // 3/8 – 1 9/16 " |
Possible groove widths |
9 mm / 3/8 " |
Cutting disc Ø |
125 mm / 5 " |
Rated input power |
1900 W |
Output power |
1120 W |
No-load speed |
5000 rpm |
Revolutions at rated load |
4200 rpm |
Torque |
6 Nm |
Weight (without power cable) |
4.6 kg / 10.1 lbs |
Cable length |
4 m / 13 ft |
Noise Emission | Sound pressure level |
93 dB(A) |
Noise Emission | Sound power level (LwA) |
104 dB(A) |
Noise Emission | Uncertainty of measurement K |
3 dB(A) |
SCOPE OF DELIVERY:
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
