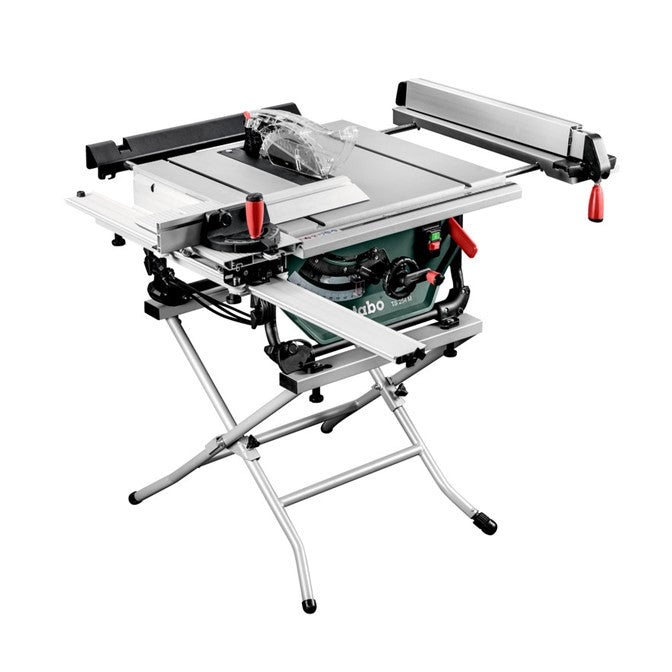

THIS COMBO INCLUDES THE TSU STAND AND TS SLIDING TABLE!







Compact mobile table saw.

FEATURES

• Anti-twist tubular frame construction for highest demands on the building site and during installations.
• Cables and all add-on components for transport can be stored on the casing.
• Powerful motor with electronic overload protection.
• Motor brake for quick stop of the saw blade in 3 seconds.
• Restart protection: prevents unintentional start-up after power supply interruption.
• Soft start for long service life of motor and drive.
• Precisely adjustable parallel guide / rip fence with double clamping and quick fastening.
• Precise saw blade inclination via gear guide.
• Automatic resetting to 0 – 45 ° after undercuts.
• Easy saw blade change with spindle lock.
• Splitting wedge can be lowered without tools for hidden cuts and transport.
• Precise, extendable table width extension for extra large working surfaces.TECHNICAL DATA













































  Working height	860 / 334 mm // 33.88 / 13.15 "
  Cutting height	0 – 80 mm // 0 – 3.15 "
  Maximum cutting height 90/45°	80 / 48 mm // 3.15 / 1.87 "
  Maximum cutting width at rip fence	520 mm / 20.46 "
  Maximum material width at mitre fence	195 mm / 7.68 "
  No-load speed	4200 rpm
  Cutting speed	56 m/s / 184 ft/s
  Saw blade	254 x 30 mm // 10 x 1.181 "
  Saw blade swivel range	-1.5 – 46.5 °
  Rated input power S1 100%	1500 W
  Weight	24.4 kg / 54 lbs
  Dimensions	669 x 748 x 334 mm // 26.343 x 29.437 x 13.156 "
  Cable length	2.3 m / 90.565 "
  Noise emission	Sound pressure level : 92 dB(A) Sound power level (LwA) : 105 dB(A) Uncertainty of measurement K : 3 dB(A)


  SCOPE OF DELIVERY
• Carbide saw blade with alternately bevel-ground tips (40 teeth).
• Mitre Fence.
• Sliding table TS.
• Table Length Extension.
• Table width extension (right).
• Push stick.
• TSU Stand.
• Rip Fence.
