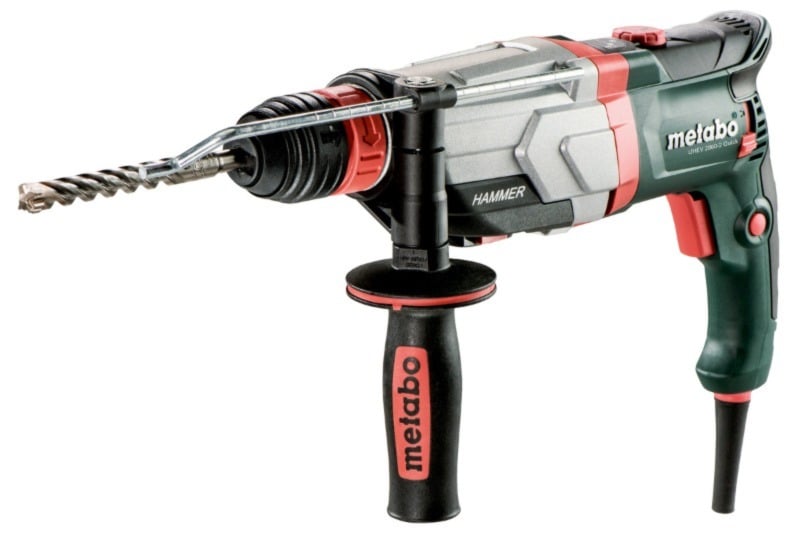

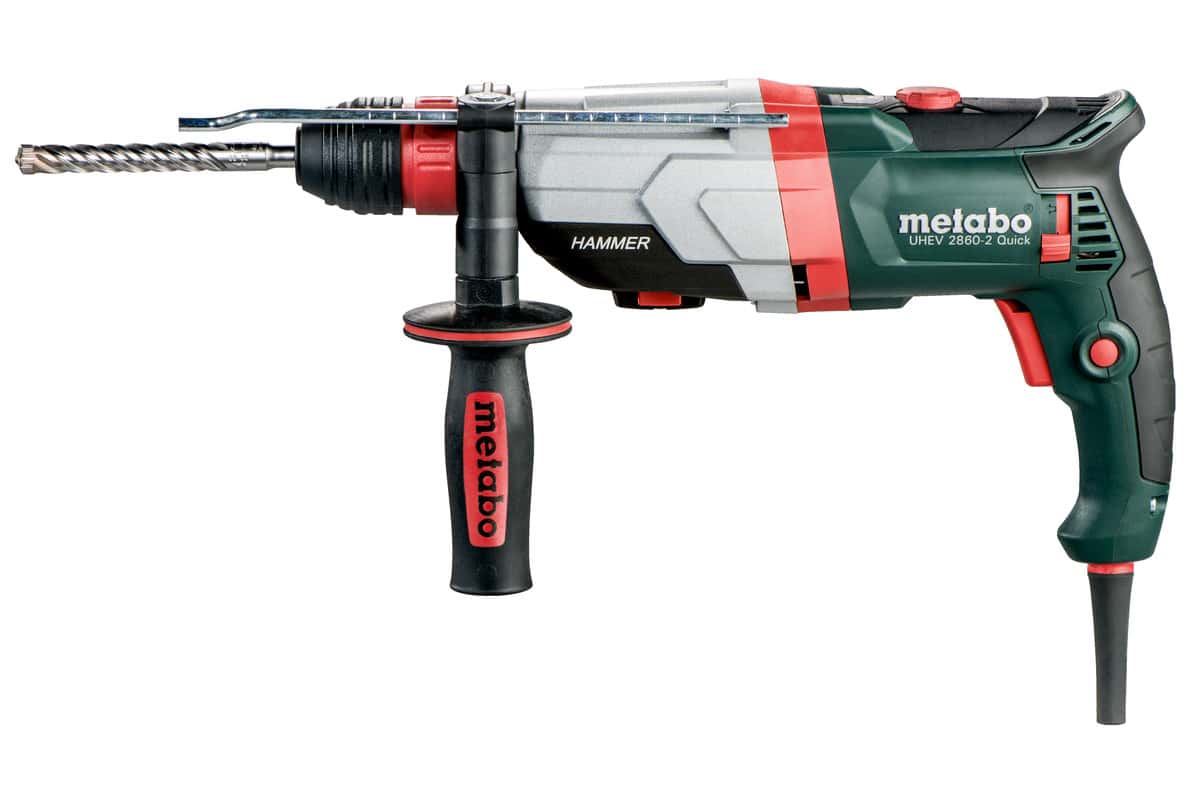

UHEV 2860-2 Quick  Multi hammer

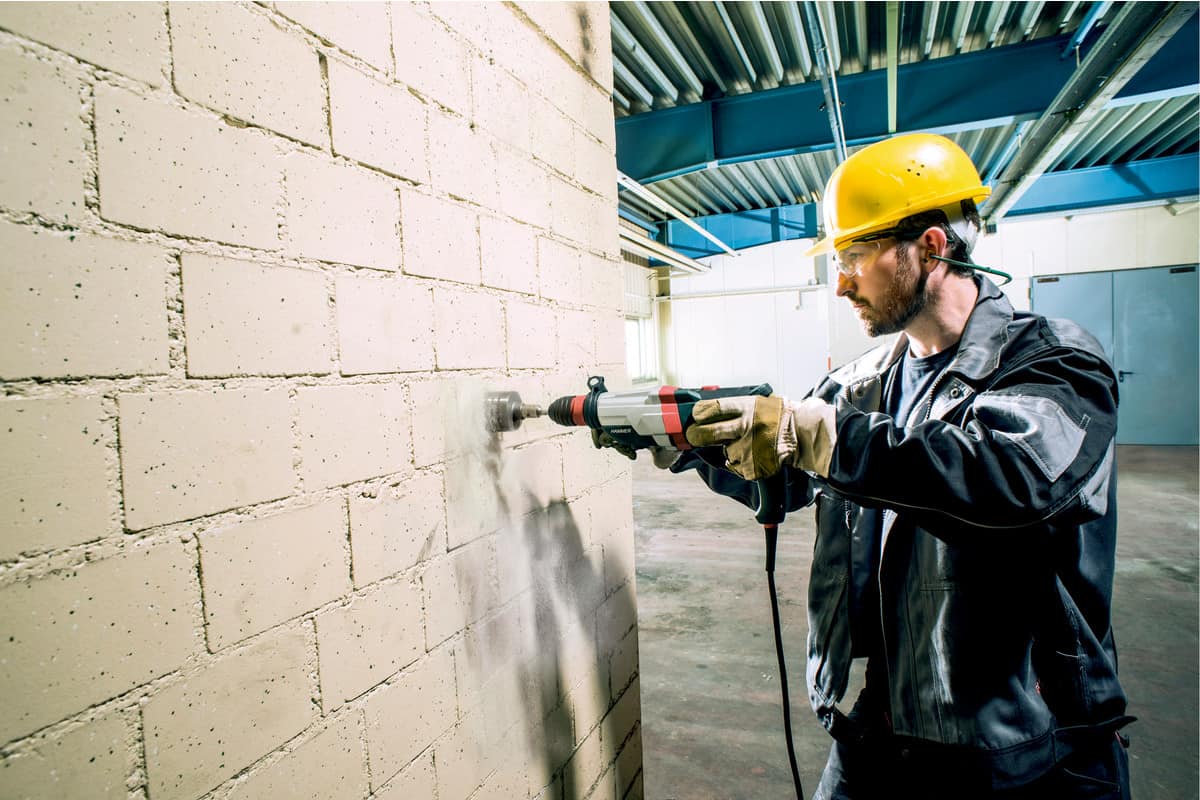

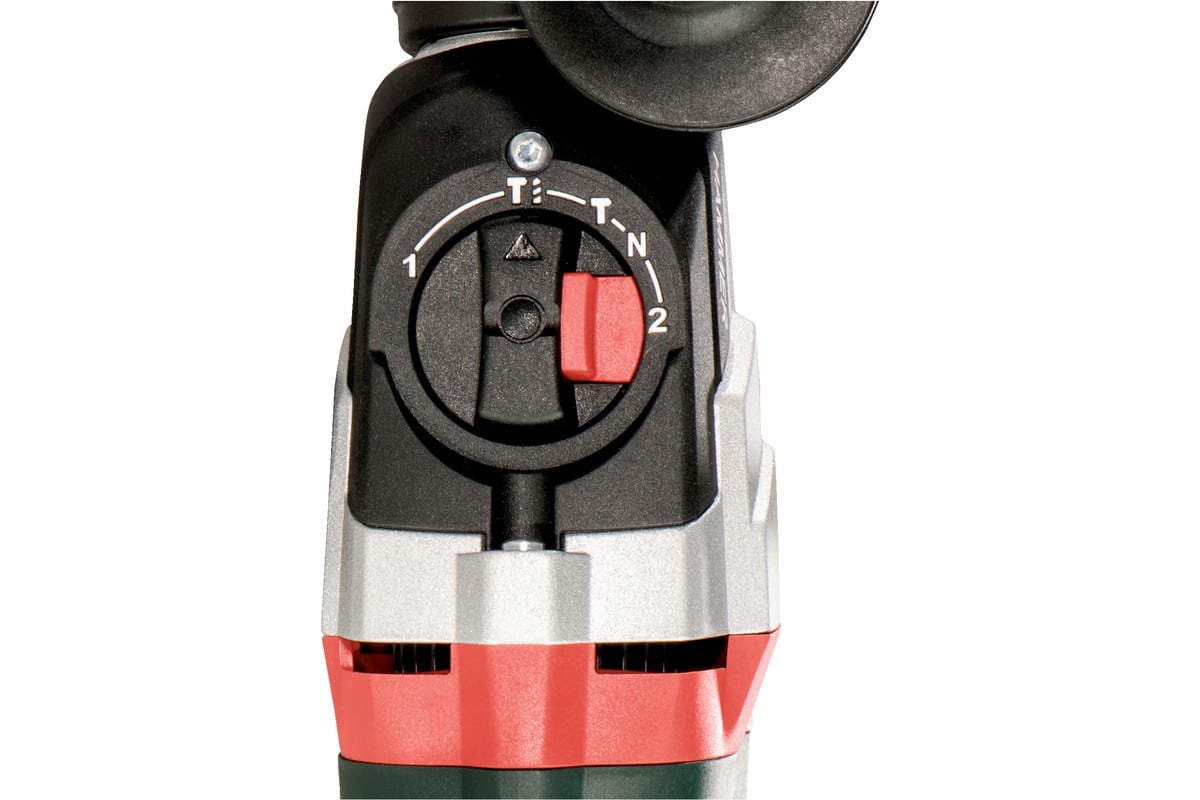

• Quick Multi Hammer with 4 functions: hammer drilling, drilling without impact at two speeds, and chiseling

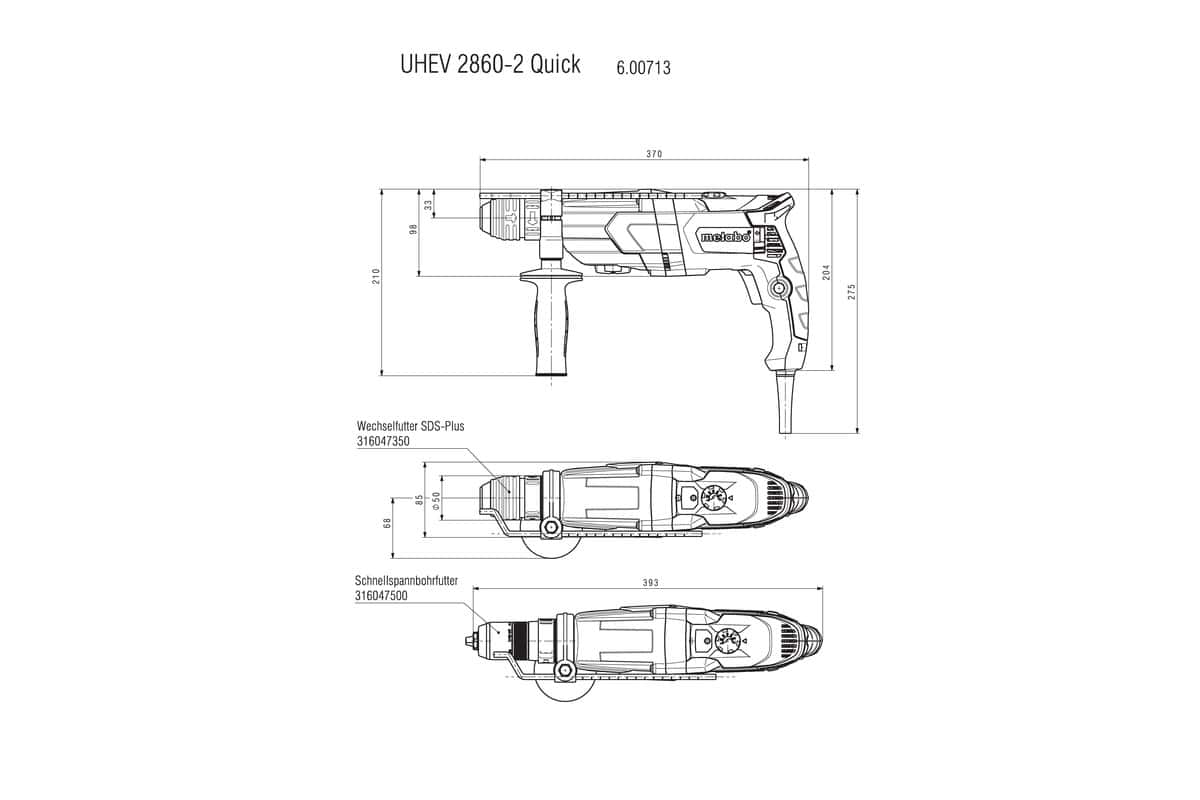

• Quick Multi Hammer: quick change between SDS Plus hammer chuck and keyless chuck for drilling in wood and metal
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customized speeds, which remain constant under load

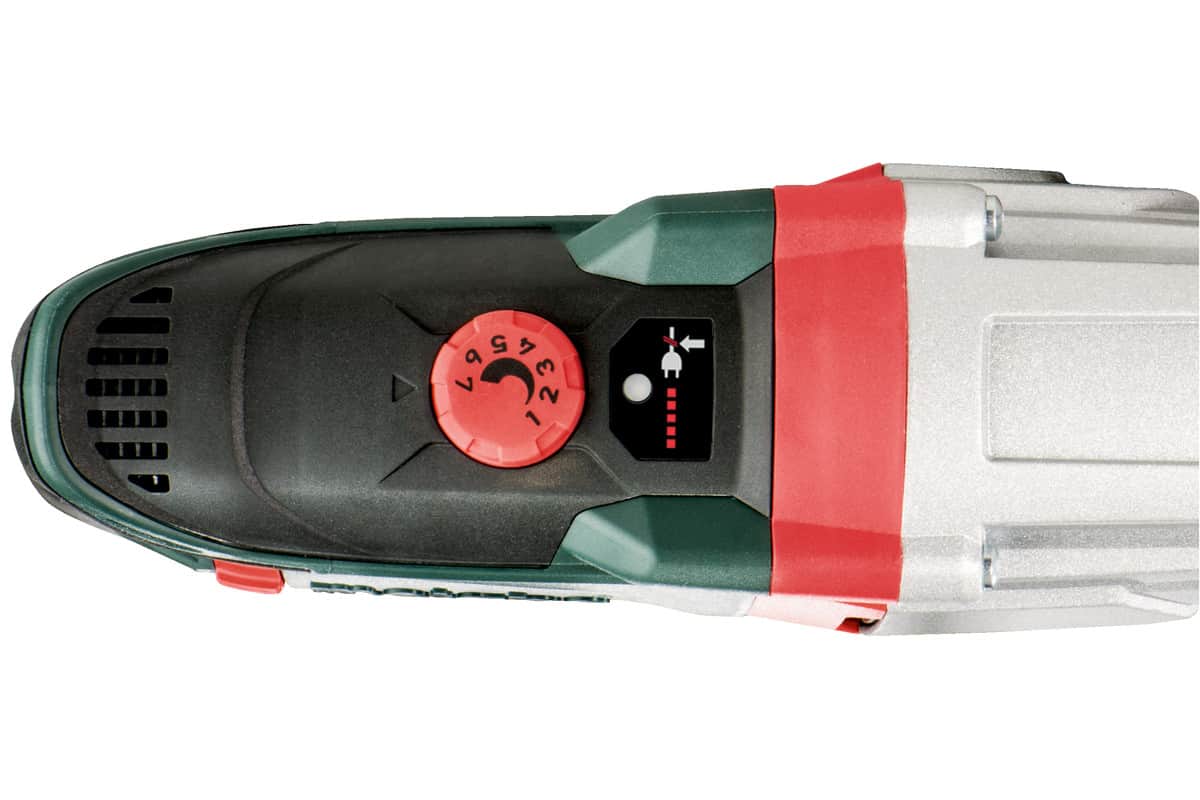

• Thumbwheel for preselection of the speed and impact rate

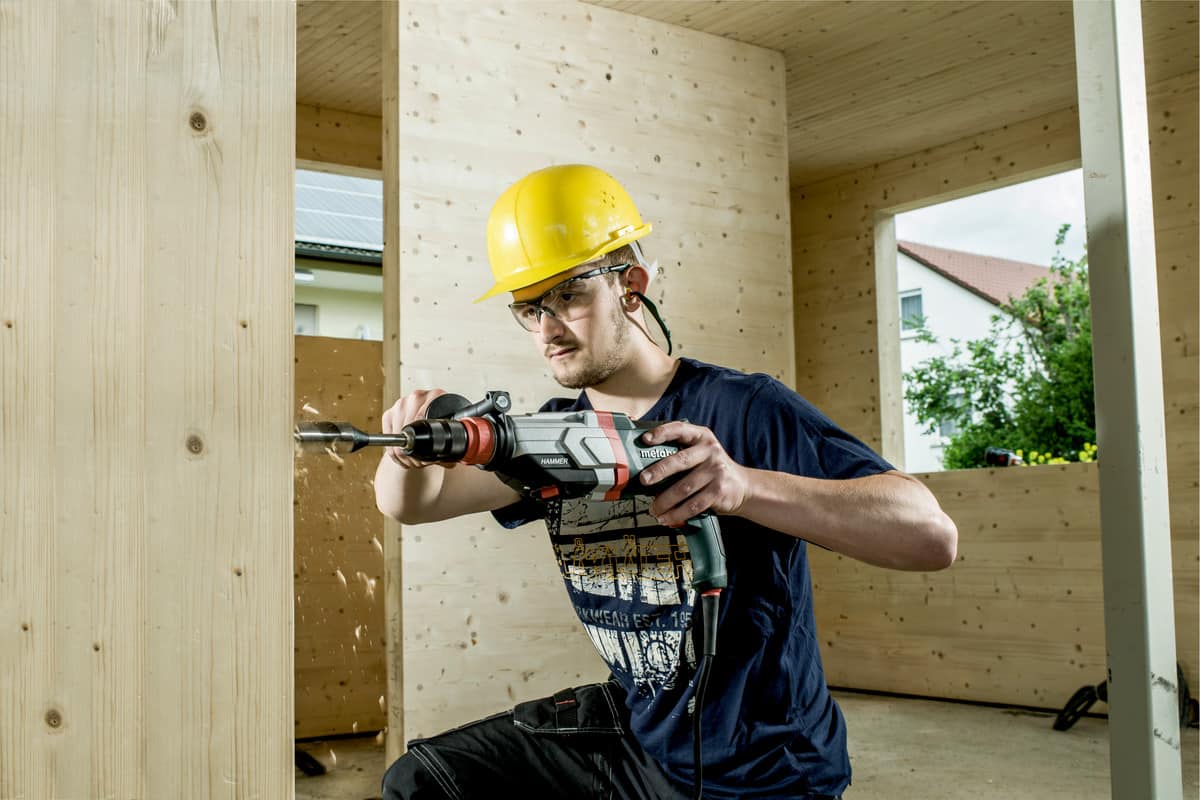

• Two-speed gear unit: two drilling speeds for effective drilling in wood and metal
• Metabo Marathon-motor with dust protection for long service life
• High-performance hammer action precisely mounted in a housing made of aluminum alloy: long-lasting and robust

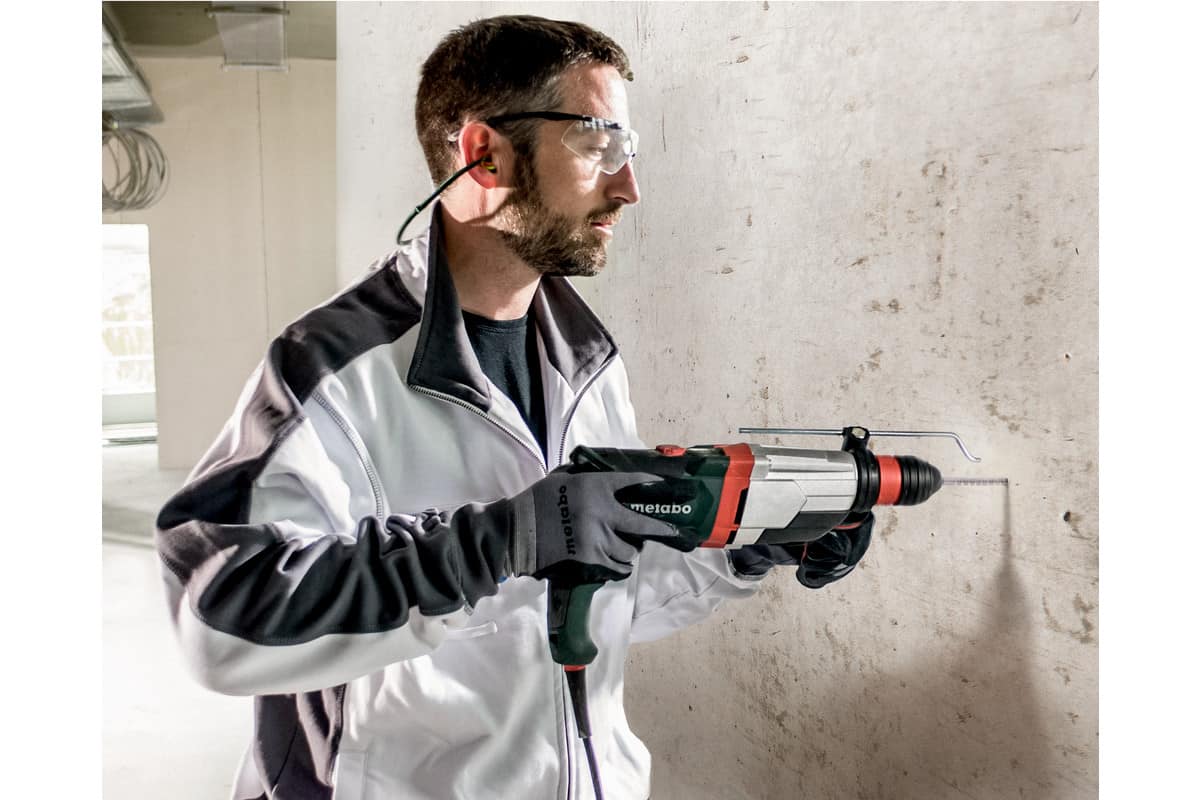

• Perfect ergonomics thanks to the center of gravity being near the hand and optimized handle contour
• Bottom switch protected against damage and dust
• Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
• Restart protection: prevents unintentional start-up after a power supply interruption
• Lockable switch for comfortable working in continuous operation
• Cable-protecting ball joint for optimal freedom of motion when working
• With metaBOX, the intelligent solution for transport and storage

Technical data

• Max. single blow energy (EPTA) 3.4 J
• Maximum impact rate 4500 bpm
• Rated input power 1100 W
• Drill-Ø concrete with hammer drills 28 mm
• Drill-Ø masonry with core bits 68 mm
• Drill Ø steel 13 / 6 mm
• Drill-Ø softwood 35 / 30 mm
• No-load speed 0 - 900 / 0 - 2100 rpm
• Revolutions at rated load 900 / 2100 rpm
• Bit retainer SDS-plus
• Collar diameter 50 mm
• Weight (without power cable) 3.3 kg
• Cable length 4 m

• Drilling in metal at 4.3 m/s²
• Uncertainty of measurement K 1.5 m/s²
• Hammer drilling concrete at 13.5 m/s²
• Uncertainty of measurement K 1.5 m/s²
• Chiseling 7.2 m/s²
• Uncertainty of measurement K 1.5 m/s²

• Sound pressure level 90 dB(A)
• Sound power level (LwA) 99 dB(A)
• Uncertainty of measurement K 3 dB(A)
